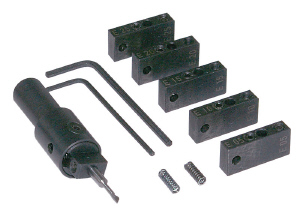

Components
1 - Base holders
There are 3 different holder types.
- Standard
- Standard with clamping surface
- XL, for the use of much stronger springs

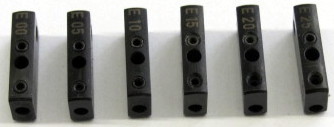

2 - Inserts
An Insert is choosen from the table below, and must be mounted in a holder. The inserts have an alignment into which the blade will be put. The bigger the bore diameter, the bigger the distance of the alignment to the appliance axis.
| Type | Bore diameter |
|---|---|
| E00 | 0,8 - 2,5 |
| E05 | 2,5 - 3,5 |
| E10 | 3,5 - 4,5 |
| E15 | 4,5 - 5,5 |
| E20 | 5,5 - 6,5 |
| E25 | 6,5 - 7,5 |
3 - Blades
The blades are the consumable parts which one can renew. The durability depends on the workpiece material (approx. 5000 parts at average-hard steel). There are different sizes and forms available:- Regular form: one-sided sharp, only deburring of inside edges
- Special form /B: on both sides sharp, deburring outside and inside
- Special form /25: for cross-drilled holes into very tight through holes
| Type | Bore diameter |
|---|---|
| S08 | 0,8 - 1,0 |
| S10 | 1,0 - 1,2 |
| S12 | 1,2 - 1,5 |
| S15 | 1,5 - 2,0 |
| S20 | 2,0 - 2,5 |
| S23 | 2,5 - 7,5 |
In addition, we can deliver special forms, which are adapted to a specific application.
4 - Springs
There are 8 types of springs.4 for the standard holders and 4 for the XL holder.
The choice of the spring is vital for the deburring success.
| Type | Spring force |
|---|---|
| F40 | low, standard |
| F50 | middle, standard |
| F55 | strong, standard |
| F63 | extra strong, standard |
| F63 | low, XL |
| F80 | middle, XL |
| F90 | strong, XL |
| F100 | extra strong, XL |
